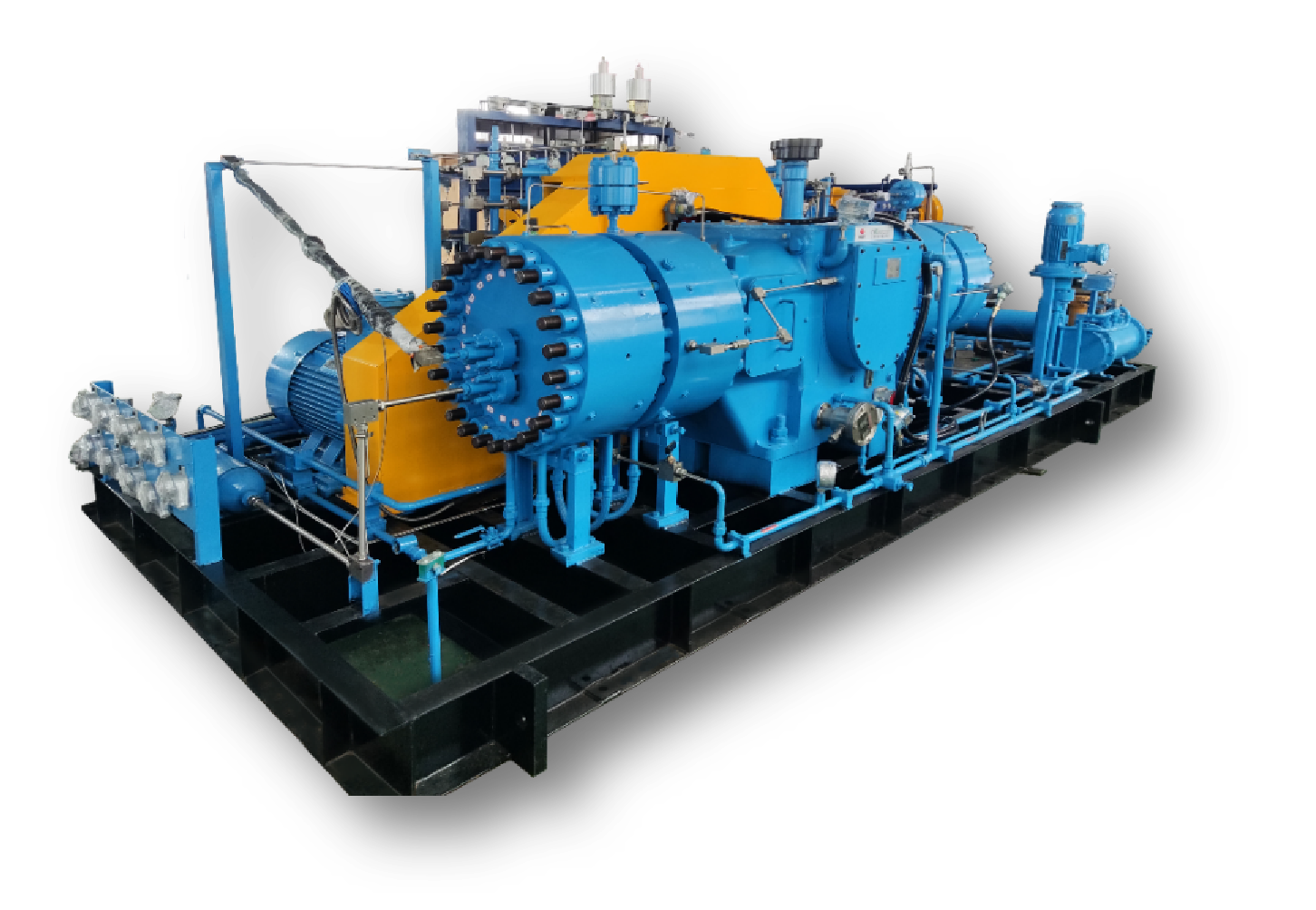

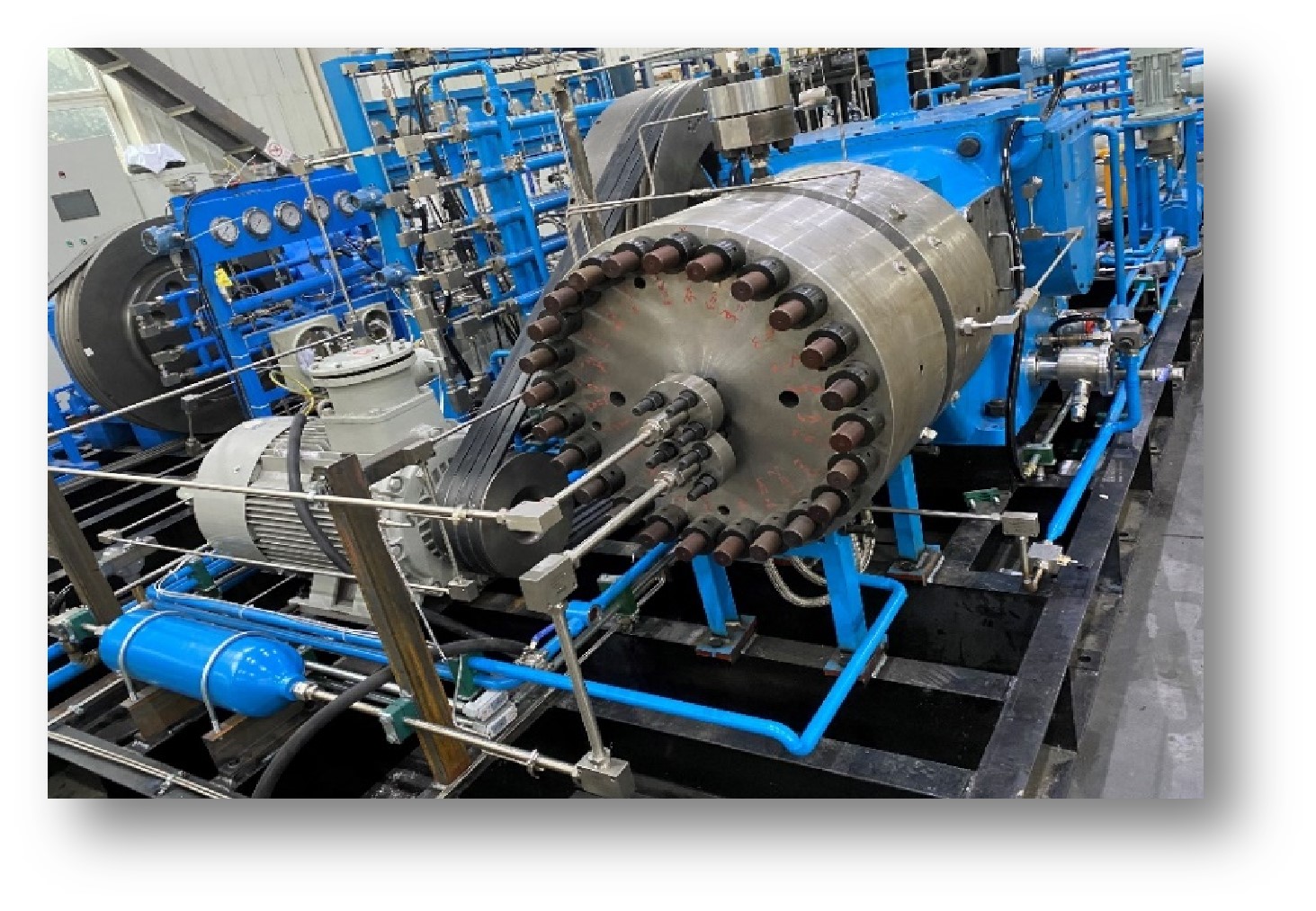

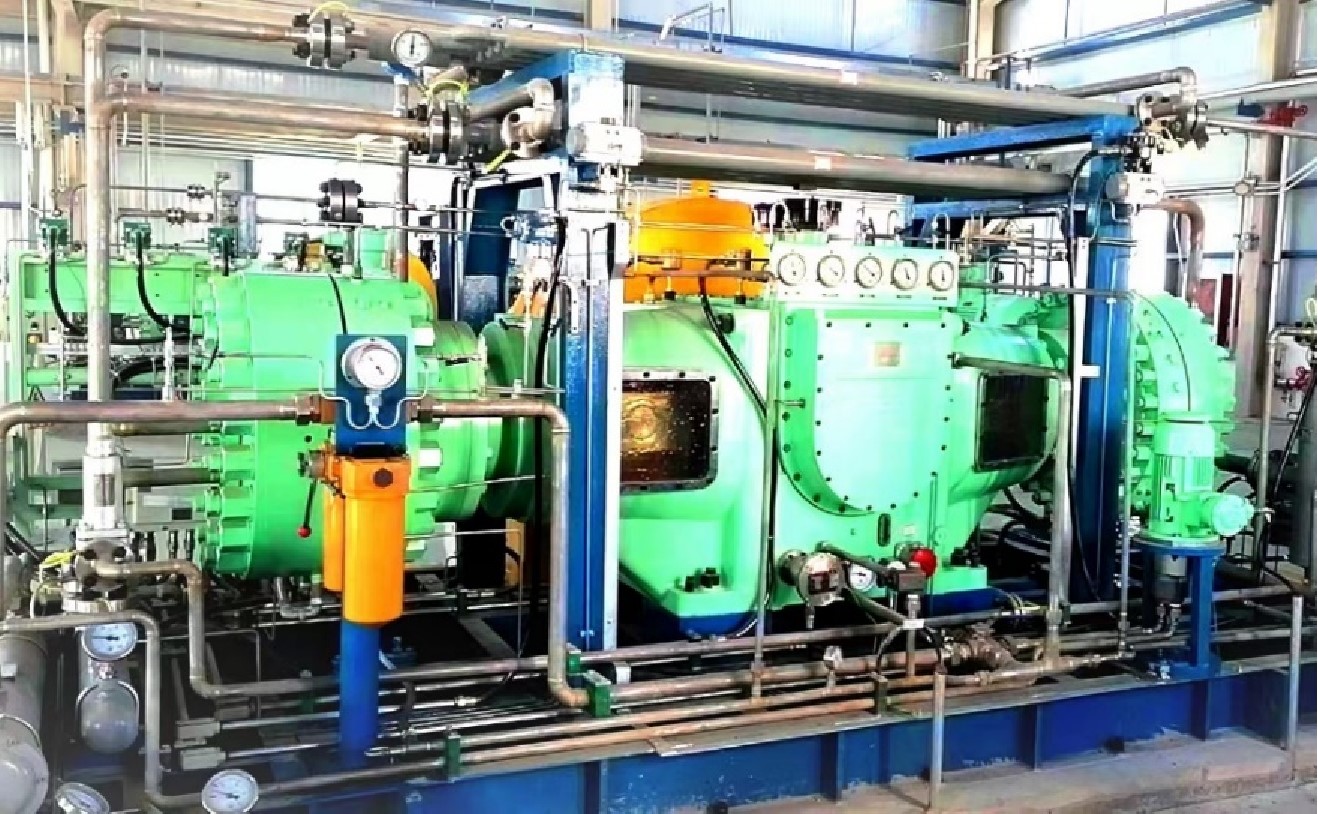

32/90/250MPa Diaphragm Hydrogen Compressor

The hydrogen diaphragm compressor is a highly customizable, high-performance solution engineered for ultra-high-pressure and high-purity hydrogen compression applications. All pressure parameters, flow rates and structural configurations can be fully tailored to specific on-site process conditions. All specifications listed on this page are for reference only and do not represent fixed standard configurations.

Available in three mainstream pressure grades of 32 MPa, 90 MPa and 250 MPa, this compressor adopts mature all-metal diaphragm compression technology. Equipped with proprietary patented core technologies, it delivers exceptional operational stability, zero medium contamination and near-zero gas leakage. With low-vibration mechanical design and full intelligent automatic control, the equipment is widely applicable to hydrogen refueling stations and various industrial clean energy projects worldwide.

Features

Maximum reference flow up to 2000 Nm³/h, adjustable to match your actual hydrogen supply volume
Flexible parallel layout design to expand total throughput for large-scale continuous hydrogen supply
Optimized structural layout for steady 24-hour uninterrupted running
Reference pressure grades: 32MPa / 90MPa / 250MPa, fully customisable inlet & outlet pressure per process demand
Reference working condition: 12.5MPa inlet to 87.5MPa stable discharge for 90MPa version
Breakthrough multi-stage compression technology to meet diverse high-pressure hydrogen boosting demands
Complete isolation between hydraulic oil and hydrogen medium via diaphragm partition, no medium contamination
All static welding sealing design to eliminate hydrogen escape, ideal for high-purity hydrogen working conditions
Fully closed gas circuit with measurable zero leakage performance
One-touch automatic startup and shutdown program with integrated PLC control
Real-time remote monitoring and fault early warning to support unmanned running
Cut long-term labor input and daily operation cost
Equipped with certified domestic and international sensors, pressure transmitters and safety valves
Balanced crankshaft hydraulic drive greatly reduces unit vibration during full-load operation
Pass full third-party industrial safety and performance acceptance standards
Optimized three-stage compression framework as standard reference layout, adjustable stages upon request
High compression ratio with compact overall footprint
Lower spare parts consumption and regular maintenance frequency

Applications

Hydrogen refuelling Stations (35MPa / 70MPa / 90MPa systems)
On-site Hydrogen Production (Methanol reforming, electrolysis systems)
Petrochemical Industry
Fluorochemical & Silicon Chemical Industry
Nuclear Power & Energy Sector
Metallurgy & Pharmaceutical Industry
Aerospace & Defense
Industrial Gas Applications
Future hydrogen supply for construction machinery, metro sites, and fuel cell vehicles

Onsite Ultra-High Pressure Hydrogen Compression

Onsite compression of high-purity hydrogen to ultra-high pressure grades (32 MPa, 90 MPa, 250 MPa) is achievable with our industrial Hydrogen Compressor diaphragm portfolio. The selection of compression model is determined by core evaluation criteria including target discharge pressure, required volumetric flow rate, inlet hydrogen pressure, footprint limits, capital expenditure and long-term operational cost.

At HYVODA, we specialise in domestic breakthrough diaphragm compression systems that fully substitute imported high-pressure hydrogen compression equipment, delivering turnkey skid packages for hydrogen refuelling stations, electrolysis integration and heavy industrial hydrogen production plant projects. As a professional Renewable Energy EPC Contractor, our engineering team delivers customised sizing and technical guidance to match your exact hydrogen compression duty cycle.

Diaphragm Compression Technology for Hydrogen

We are a leading domestic manufacturer of high-pressure hydrogen diaphragm compressors, with a growing global installed reference base covering Asian hydrogen refueling system hubs, petrochemical plants and renewable hydrogen plant facilities. Our equipment adopts all-metal sealed diaphragm compression architecture, delivering 100% oil-free, zero-leakage hydrogen compression without contaminating feed gas purity.

This is the safest, most reliable compression technology for high-purity hydrogen streams, requiring only grid power and process cooling water as site utilities, fully compatible with upstream methanol reforming hydrogen generation plants and electrolysis systems including Alkaline Electrolyzer and PEM Electrolyzer units.

Diaphragm Compression – Oil-Free Ultra-High Pressure Technology

Our three-tier diaphragm compressor platform supports volumetric flow rates up to 2000 Nm³/h per standalone skid unit. For super-scale hydrogen compression demand, multiple compressor skids can be paralleled with shared cooling, control and safety subsystems for modular capacity expansion, perfectly matching large-scale green hydrogen plant and hydrogen power plant operation demands.

Core Advantages

1. World-Leading Patented Technology

Equipped with proprietary core patents, this compression unit delivers advanced technical performance to serve global clients across all hydrogen energy sectors. Our independent R&D system supports reliable high-pressure hydrogen compression solutions for hydrogen refuelling stations and industrial hydrogen facilities worldwide.

2. Verified Global Project Performance

Stable operation proven in overseas hydrogen refueling projects in South Korea, capable of handling 1000 kg daily hydrogen throughput with continuous reliable performance.

3. Optimized Low-Vibration Structure

All structural parts undergo finite element vibration simulation and repeated bench testing, delivering smooth stable running under full continuous load.

4. Compact Skid Layout & Low Maintenance

Integrated three-stage compression replaces traditional two-unit combined setup, shrinking occupied area and simplifying on-site pipeline integration, lowering long-term maintenance expenditure.

5. Full Customization Support

All pressure, flow, cooling mode and skid size can be modified to match limited plant space and special process requirements. We provide one-to-one engineering scheme design for non-standard working conditions.

Metal Diaphragm Oil-Isolated Compression Principle

Our compressor utilises a precision multi-layer metal diaphragm core design. Hydraulic oil drives reciprocating deflection of the diaphragm sheet, creating volumetric change within the fully isolated hydrogen gas chamber. Hydrogen is drawn into the gas cavity via suction valves during the diaphragm retraction stroke, then compressed and discharged through outlet valves as hydraulic pressure pushes the diaphragm forward.

The complete physical separation between hydraulic oil and hydrogen gas eliminates cross-contamination entirely. Full static sealing across all gas wetted components delivers near-zero atmospheric hydrogen leakage, while the differential pressure diaphragm architecture delivers intrinsically safe, low-complexity round-the-clock operation for Renewable Hydrogen production projects.

MODELS

Disclaimer: All parameters shown below are reference standards. Every Hydrogen Diaphragm Compressor can be fully customised according to your actual working conditions. Please submit your inlet pressure, target discharge pressure and flow demand for a tailored technical scheme.

Model	32MPa Reference	90MPa Reference	250MPa Custom Version
Max Reference Flow Rate	Up to 2000 Nm³/h	Up to 2000 Nm³/h	Fully Customizable
Reference Inlet Pressure	Customizable	12.5 MPa	Customizable
Reference Outlet Pressure	32 MPa	87.5 MPa	Up to 250 MPa
Reference High-Pressure Flow	—	≥350 Nm³/h	Customizable
Max Piston Thrust	Up to 250 kN	Up to 250 kN	Up to 250 kN
Compression Mechanism	Diaphragm	Diaphragm	Diaphragm
Gas Leakage Level	Zero measurable leakage	Zero measurable leakage	Zero measurable leakage
Control System	Full automatic PLC	Full automatic PLC	Full automatic PLC

Core Product Capabilities Breakdown

1. High Mass Flow Throughput Performance

Every compressor skid is rated for a maximum volumetric flow of 2000 Nm³/h, capable of sustaining large-scale continuous hydrogen compression demand for megawatt-class electrolyser stations and industrial hydrogen pipeline boosting. All mechanical assemblies are optimised for uninterrupted 24/7 steady-state operation with minimal pressure fluctuation, supporting full-cycle Industrial Green Hydrogen Solutions.

2. Ultra-High Discharge Pressure Coverage

Three standard industrial pressure grades cover mainstream hydrogen energy requirements: 32 MPa for medium-pressure storage, 90 MPa for 70 MPa hydrogen refuelling stations, and customisable 250 MPa variants for ultra-high-pressure storage and aerospace testing. The 90 MPa model delivers stable 87.5 MPa outlet pressure from a standard 12.5 MPa low-pressure hydrogen inlet, representing a landmark domestic technological breakthrough to replace imported compression hardware for Green Hydrogen Production Plant projects.

3. 100% Oil-Free & Zero Leakage Gas Circuit

The metal diaphragm physically isolates hydrogen process gas from the hydraulic drive circuit, eliminating all oil contamination risks critical for high-purity hydrogen applications including fuel cell refuelling, semiconductor manufacturing and CVD crystal growth. Full welded static sealing throughout the gas path achieves certified zero hydrogen fugitive emissions, meeting stringent hazardous gas safety standards for premium Renewable Hydrogen supply.

4. Unattended Intelligent Automated Operation

Integrated PLC control enables single-touch automatic startup and shutdown sequences with real-time system health monitoring, fault alerting and remote diagnostic access. No constant on-site operator supervision is required, drastically reducing labour overhead and human error risks during long-term continuous operation of industrial hydrogen equipment.

5. Robust Safety & Stable Low-Vibration Design

All process valves, pressure transmitters and safety relief assemblies utilise top-tier certified international and domestic components. The balanced crankshaft and hydraulic drive layout minimises unit vibration during full-load operation, passing all third-party industrial safety and performance assessment benchmarks for commercial hydrogen energy projects.

6. High-Efficiency Multi-Stage Compression Architecture

Proprietary three-stage compression design replaces traditional dual-compressor setups for high-pressure hydrogen boosting, reducing overall skid footprint, simplifying site integration and lowering long-term spare parts and maintenance expenditure, ideal for matching Wind Solar Hybrid System green energy supporting facilities.

End-To-End Customer Service Package

Technical Pre-Sales Support

Full-cycle engineering consultation and personalized custom compression scheme design based on your hydrogen plant parameters.

On-Site Installation & Commissioning

Professional certified hydrogen process engineers deliver full assembly, piping connection, electrical debugging and safety acceptance on site.

Operation & Maintenance Training

On-site and remote dual training covering startup sequences, daily inspection and diaphragm replacement workflows for your maintenance staff.

Genuine Spare Parts Supply

Long-term stable supply of original diaphragms, valves and sealing assemblies with fast global delivery.

Optional Remote Predictive Monitoring

Intelligent cloud monitoring system add-on for real-time equipment status tracking and early fault prediction.

24/7 Global Service Response

Round-the-clock technical support hotline and regional field service teams to resolve equipment issues rapidly worldwide.

Industrial & Energy Applications

Application Segment	Process Description
Hydrogen refuelling Stations (35 / 70 / 90 MPa)	Core Hydrogen Compressor skid for fuel cell passenger vehicles, commercial trucks, construction machinery and metro hydrogen refueling system hubs, proven stable operation in overseas refuelling projects with 1000 kg/day daily throughput capacity
On-Site Hydrogen Generation Plants	Downstream booster compression for water electrolysis (Alkaline Electrolyzer, PEM Electrolyzer) and methanol reforming hydrogen generation systems to raise storage and pipeline delivery pressure for hydrogen production plant
Petrochemical & Fluorosilicon Chemical Industry	High-purity hydrogen compression for catalytic hydrotreating, silane production and fluorochemical synthesis requiring contamination-free gas feed
Nuclear Power & Renewable Energy Sector	Hydrogen storage compression for off-grid wind/solar green hydrogen energy buffer systems, supporting Energy Storage System and Clean Energy Storage Solutions
Metallurgy & Pharmaceutical Manufacturing	Clean high-pressure hydrogen supply for metal sintering, annealing heat treatment and pharmaceutical hydrogenation synthesis processes
Aerospace & Defence Testing	Ultra-high pressure hydrogen compression for fuel cell prototype testing and aerospace component environmental simulation
Industrial Gas Merchant Facilities	Bulk hydrogen cylinder filling and tube trailer loading for commercial technical grade hydrogen distribution

FAQ’S

Why diaphragm hydrogen compressor is more suitable for hydrogen fueling system than reciprocating piston compressor?

This Diaphragm Hydrogen Compressor adopts full metal diaphragm isolation structure, which completely separates hydraulic oil from hydrogen medium and achieves 100% oil-free compression, avoiding trace oil pollution that would damage fuel cell stacks of hydrogen fueling system. In contrast, Reciprocating Hydrogen Compressor inevitably carries tiny lubricant residues and has higher hydrogen leakage risks due to piston ring wear. Besides, the diaphragm unit supports ultra-high compression ratio to directly reach 87.5MPa outlet matching 70MPa vehicle refueling standards, with fully welded static sealing to lower hydrogen escape hazards, meeting strict safety and purity standards of hydrogen fueling system all year round.

What maximum customizable discharge pressure can this diaphragm unit reach for vehicle hydrogen refueling?

For standard vehicle hydrogen refueling scenarios, the Diaphragm Hydrogen Compressor can be customized to three mainstream pressure grades: 32MPa, 90MPa and 250MPa. The 90MPa model stably outputs 87.5MPa hydrogen with 12.5MPa inlet pressure, perfectly matching 70MPa hydrogen fueling system for passenger cars and commercial vehicles; the 250MPa customized version is applicable to ultra-high-pressure hydrogen storage and special fuel cell vehicle testing stations.

Can oil-free gas circuit perfectly cooperate with CPH ultra-pure hydrogen gas generator?

Absolutely. The full oil-free gas circuit of this Diaphragm Hydrogen Compressor has no contact between lubricating medium and hydrogen, and its pipeline interface parameters fully match the outlet specifications of CPH ultra-pure hydrogen gas generator. After PSA and metal membrane polishing by CPH, high-purity hydrogen will not be contaminated during subsequent compression, retaining 9N ultra-clean gas quality for hydrogen fueling system and semiconductor supporting facilities.

What anti-leakage design ensures safety for long-term green hydrogen plant operation?

The Diaphragm Hydrogen Compressor adopts double-layer metal clamped diaphragm structure plus full all-welded gas pipeline without detachable dynamic sealing points, realizing measurable zero hydrogen leakage. All gas-contact parts use hydrogen embrittlement resistant alloy materials, equipped with real-time hydrogen concentration sensors and automatic emergency shutdown interlocks. The closed gas circulation design eliminates fugitive hydrogen emission risks during long continuous operation of green hydrogen plant.

Is multi-stage compression configurable to lower single unit pressure load?

Multi-stage compression framework is optional for this Diaphragm Hydrogen Compressor. Customers can customize 3-stage standard layout or adjusted stage quantity according to inlet pressure and target discharge pressure. Step-by-step pressure reduction lowers single-stage compression temperature and load, reducing diaphragm fatigue loss and extending service life, suitable for large-scale hydrogen fueling system and hydrogen production plant with continuous high-throughput demand.

What’s the service life difference of core diaphragm compared with piston wearing parts?

The core metal diaphragm of Diaphragm Hydrogen Compressor has a service cycle of 3–5 years under rated continuous working conditions, with only regular visual inspection required. While Reciprocating Hydrogen Compressor’s piston rings, packing and valve components are vulnerable consumables that need monthly inspection and overhaul every 1–2 years. Diaphragm units feature fewer wearing parts and longer maintenance intervals, cutting long-term spare parts and labor costs for hydrogen fueling system operation.
