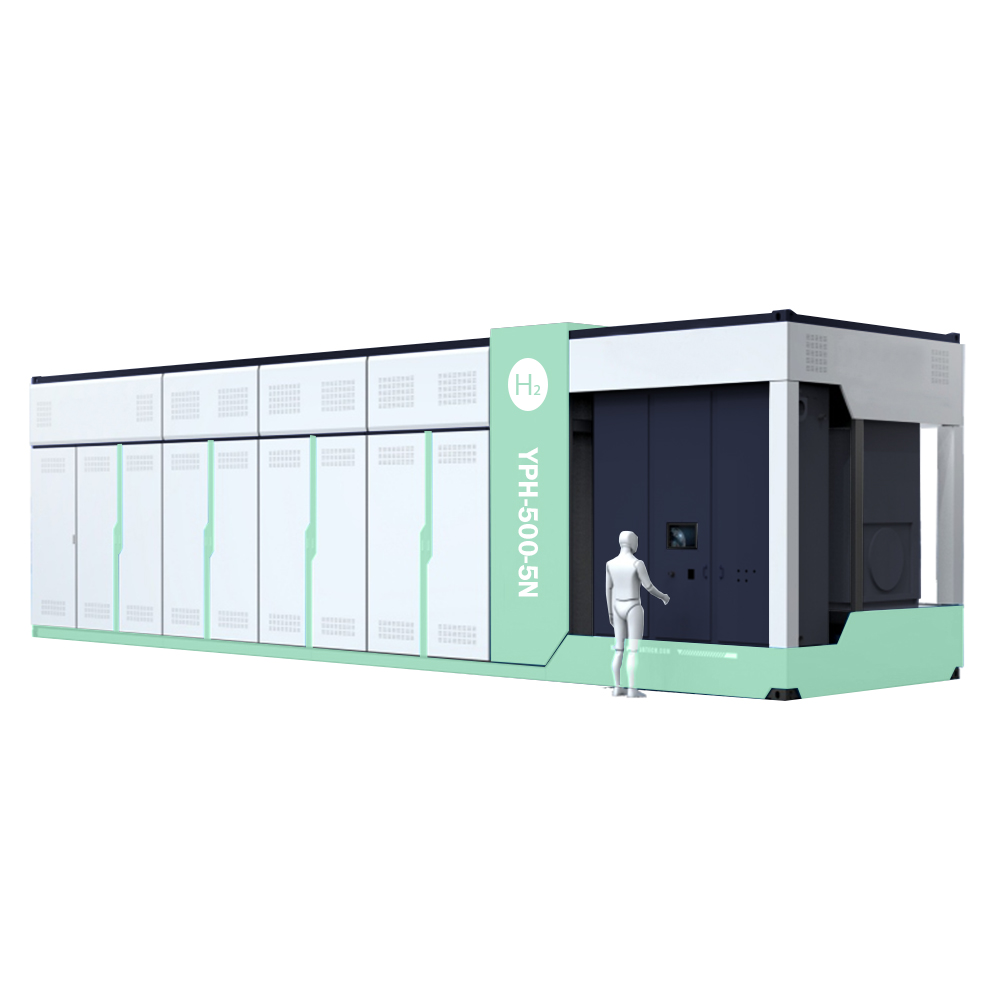

YPH Series Hydrogen Gas Generator

YPH Series Hydrogen Gas Generator

The YPH Series High-Purity Hydrogen Generation Equipment produces hydrogen with a purity up to 99.999%, tailored for large-volume on-site hydrogen demands ranging from 150 to 500 Nm³/h. It serves as an optimal alternative to tube trailer hydrogen delivery, effectively eliminating potential hazards associated with hydrogen storage and transportation. The system guarantees steady, uninterrupted gas supply while substantially cutting comprehensive hydrogen consumption costs for industrial operators.

Read More >
Request a quote
Calculator

Features

  • Ultra-High Purity Hydrogen – ≥99.9999%, suitable for semiconductor-grade applications.

  • Advanced Purification – PSA purification with optional Pd membrane for ultra-trace impurity removal.

  • Stable Output – Designed for continuous operation with minimal fluctuation.

  • Custom Integration – Can be tailored to match cleanroom requirements.

  • Automated Control – Intelligent monitoring with data logging and alarm functions.

  • Compact Design – Skid-mounted for quick installation in industrial facilities.

Applications

  • Semiconductor manufacturing

  • Flat panel display production

  • Optical fiber drawing

  • Specialty material processing

  • Electronics assembly requiring ultra-pure hydrogen

Onsite Generation of Ultra-High Purity Hydrogen
How Does A Hydrogen Generator Work For YPH System

If you wonder how does a hydrogen generator work to produce stable ultra-high purity hydrogen, our YPH hydrogen gas generator relies on proprietary methanol reforming + PSA purification technology, with methanol steam reforming as its core reaction, also known as steam reforming of methanol or reforming methanol. It can stably output hydrogen with minimum purity of 99.999%, and optional palladium membrane polishing upgrades hydrogen to 99.9999%.
HYVODA provides turnkey YPH methanol reformer systems for large-scale industrial onsite hydrogen demand, with abundant global project delivery experience. This YPH hydrogen gas generator replaces risky tube trailer hydrogen supply, removes gas storage and transportation hazards, maintains continuous stable hydrogen output, and greatly reduces long-term hydrogen operation costs for heavy industry and electronics manufacturers. The matching scheme of YPH methanol reforming equipment can be customized according to hydrogen consumption, raw material availability, capital budget and long-term operation cost.

YPH Methanol Reforming PSA Technology & Methanol Steam Reforming Principle

Our YPH methanol reformer is designed for medium and large flow ultra-high purity hydrogen demand, with single unit capacity ranging from 150 to 500 Nm³/hr. The whole hydrogen production process centers on methanol reforming, and the core reaction is methanol steam reforming, also called steam reforming of methanol. Compared with water electrolysis, the reforming methanol route using methanol as raw material brings prominent cost advantages and better long-term ROI under 24/7 continuous industrial hydrogen consumption.

Specifications & Core Advantages of YPH Methanol Reformer

All strengths of our YPH hydrogen gas generator built on methanol reforming technology are listed below:

  1. Fully integrated explosion-proof skid-mounted construction, compact footprint for factory rapid layout of YPH methanol reformer
  2. Rapid site installation, full YPH system handover completed within 1–2 weeks
  3. AI intelligent PLC full automatic unmanned operation, remote monitoring & data logging for YPH hydrogen gas generator
  4. Dynamic load-following operation mode, stable hydrogen output of YPH methanol reformer within 30–110% rated flow range
  5. Integrated waste heat recovery loop to minimize power consumption, lower total production cost of methanol reforming hydrogen production
  6. Dual ATEX & PED global safety certification for YPH series hydrogen gas generator
  7. Standard delivery pressure up to 1.3 MPaG, customizable pressure booster modules for YPH methanol reformer
  8. 72,000-hour continuous trouble-free operation design, 15-year service life for YPH methanol reforming equipment
  9. Custom cleanroom compliant design for semiconductor & optical fiber ultra-high purity hydrogen scenarios of YPH hydrogen gas generator

How YPH Works – Methanol Steam Reforming + PSA Purification Process

The working logic explaining how does a hydrogen generator work for YPH methanol reformer consists of two core stages: methanol steam reforming and PSA purification, the core reaction is steam reforming of methanol / reforming methanol:

  1. Preheating & Vaporization: Mixture of industrial methanol and demineralized water is vaporized via integrated waste heat recovery heat exchangers of YPH hydrogen gas generator
  2. Catalytic Methanol Steam Reforming: Hot methanol-water vapor passes over proprietary reforming catalyst inside YPH methanol reformer, realizing methanol reforming and converting feedstock into hydrogen-rich crude syngas with tiny CO, CO₂ and residual steam
  3. Cooling & Condensation: High-temperature syngas is cooled to ambient temperature; excess water vapor condenses and recycles back to feed storage tank of YPH system
  4. PSA Purification: Crude syngas enters molecular sieve PSA unit of YPH hydrogen gas generator, separating impurities to deliver standard 5N hydrogen; optional palladium membrane polishing upgrades to 6N ultra-high purity for electronic manufacturing
  5. Tail Gas Recycling: PSA tail gas is reused as heating fuel for YPH methanol reformer, cutting auxiliary heat consumption and improving energy efficiency of methanol reforming production line

YPH Series Methanol Reformer Standard Specifications

YPH Series Methanol Reformer Parameter Details
Hydrogen production capacity 150 – 500 Nm³/hr single skid YPH hydrogen gas generator
Standard Hydrogen purity 99.999 vol% (5N)Optional ultra-high purity: 99.9999 vol% (6N) with Pd membrane add-on for YPH methanol reforming system
Hydrogen dew point -73 ℃
Hydrogen delivery pressure ≤1.3 MPaG
Hydrogen outlet temperature ≤40 ℃
Purification technology Primary PSA molecular sieve, optional palladium membrane polishing for YPH methanol steam reforming equipment
Full equipment service lifespan 15 years for YPH methanol reformer
Adjustable operating flow range 30% – 110% of rated capacity of YPH hydrogen gas generator
Required feedstock & utilities (per rated output)
YPH-150 (150 Nm³/h H₂) Methanol consumption: 88 kg/hInstalled power: 220 kWCooling water circulation: 10 t/hInstrument air: 10 Nm³/hOverall dimension: 8800×3200×3200 mm
YPH-200 (200 Nm³/h H₂) Methanol consumption: 116 kg/hInstalled power: 270 kWCooling water circulation: 10 t/hInstrument air: 10 Nm³/hOverall dimension: 10500×3300×3200 mm
YPH-250 (250 Nm³/h H₂) Methanol consumption: 145 kg/hInstalled power: 310 kWCooling water circulation: 15 t/hInstrument air: 10 Nm³/hOverall dimension: 10500×3300×3200 mm
YPH-350 (350 Nm³/h H₂) Methanol consumption: 205 kg/hInstalled power: 400 kWCooling water circulation: 15 t/hInstrument air: 15 Nm³/hOverall dimension: 11300×3200×3770 mm
YPH-400 (400 Nm³/h H₂) Methanol consumption: 235 kg/hInstalled power: 520 kWCooling water circulation: 20 t/hInstrument air: 15 Nm³/hOverall dimension: 11300×3460×3770 mm
YPH-500 (500 Nm³/h H₂) Methanol consumption: 290 kg/hInstalled power: 665 kWCooling water circulation: 20 t/hInstrument air: 15 Nm³/hOverall dimension: 13570×3460×3950 mm
Core utilities required from customer Power supply, Demineralized water, Cooling water, Instrument air for YPH methanol reformer
Optional by-product Export low-pressure waste steam for factory auxiliary heating matched with YPH methanol reforming hydrogen gas generator

FAQ’s About YPH Hydrogen Gas Generator & Methanol Reforming

Q1: What purity grades of hydrogen can YPH methanol reformer deliver?

Standard PSA purification of YPH hydrogen gas generator produces stable 99.999% (5N) hydrogen with ultra-low oxygen impurities. For semiconductor, optical fiber and CVD crystal growth industries, we provide optional palladium membrane polishing module to upgrade purity to 99.9999% (6N) ultra-high purity, fully meeting electronic-grade standards of methanol reforming hydrogen production.

Q2: Does the YPH hydrogen gas generator require full-time on-site operators?

No continuous manual supervision is needed for YPH methanol reformer. The whole YPH system runs on AI-PLC full automatic control, with real-time remote data monitoring, automatic fault alarm and self-protection shutdown function. Regular preventive maintenance can be completed by customer’s engineering staff after our professional training on how does a hydrogen generator work and daily operation of methanol reforming equipment.

Q3: Can YPH methanol reforming system be customized to match exact hydrogen demand?

Yes. We offer fully tailor-made skid layout, pressure adjustment, cleanroom-grade sealing, purity upgrade and capacity expansion retrofit solutions for YPH hydrogen gas generator, perfectly matching unique production load and factory site conditions of each client using reforming methanol technology.

Q4: Is the YPH methanol reformer easy to install and commission?

All YPH hydrogen gas generator equipment is fully factory-assembled, pressure-tested and pre-commissioned as an integrated skid before delivery. On-site installation only requires utility pipeline connection, finished within 1–2 weeks. Our technical team provides full site supervision, commissioning and hands-on training covering daily operation, safety protocols and preventive maintenance of methanol steam reforming equipment.

Q5: What is the noise level of the YPH methanol reforming plant during operation?

The complete packaged YPH hydrogen gas generator keeps noise emission below 75dB(A) at 1-meter distance, suitable for quiet production workshops and cleanrooms using steam reforming of methanol technology.

Q6: What is the standard maintenance schedule of YPH methanol reformer?

Detailed preventive maintenance schedules are recorded in official Operation & Maintenance Manual. Monthly and quarterly routine inspections are required, while core catalyst and molecular sieve replacement cycles last multiple years, ensuring long-term stable operation of YPH methanol reforming hydrogen gas generator.

Application Scenarios of YPH Methanol Reformer

Our YPH hydrogen gas generator adopting methanol reforming, methanol steam reforming and reforming methanol technology supplies ultra-high purity hydrogen for multiple industries:

  1. Semiconductor Manufacturing: 5N/6N hydrogen from YPH methanol reformer for wafer etching, deposition and chip fabrication
  2. Flat Panel Display Production: Stable hydrogen output of YPH hydrogen gas generator for thin film coating process
  3. Optical Fiber Drawing: Impurity-free hydrogen generated by YPH methanol reforming equipment for fiber cladding manufacturing
  4. Special Advanced Material Processing: Controlled pure hydrogen atmosphere from YPH methanol reformer for sintering, annealing and metal heat treatment
  5. Float Glass Industry: Continuous hydrogen supply of YPH hydrogen gas generator for tin bath protection
  6. Polysilicon & Solar PV Manufacturing: High-purity hydrogen from steam reforming of methanol YPH system for silicon rod deposition
  7. CVD Lab-Grown Diamond & Crystal Growth: Mandatory 6N ultra-high purity hydrogen from YPH methanol reformer for chemical vapor deposition
  8. Precision Electronics Assembly: Cleanroom-grade hydrogen of YPH hydrogen gas generator for component brazing & surface treatment
  9. Metallurgy & Powder Metal Heat Treatment: Oxidation-free annealing atmosphere from YPH methanol reforming equipment
  10. Industrial Gas Merchants: On-site bulk hydrogen production via YPH hydrogen gas generator to replace cylinder & tube trailer hydrogen supply

Key Product Differentiators of YPH Methanol Reformer

  1. Global Compliance Passport: Dual ATEX & PED safety certifications for YPH hydrogen gas generator, meeting international export and high-standard factory requirements of methanol reforming equipment
  2. Autonomous 24/7 Unmanned Operation: AI predictive maintenance, remote diagnosis and automatic load adjustment of YPH methanol reformer cut labor costs; users can fully understand how does a hydrogen generator work without frequent manual management
  3. Uninterrupted Long-Term Reliability: 72,000-hour continuous runtime design of YPH hydrogen gas generator eliminates production downtime for round-the-clock manufacturing lines relying on methanol steam reforming
  4. Max Energy Efficiency: Built-in waste heat recovery system recycles reformer tail gas heat of YPH methanol reformer, slashing long-term energy and hydrogen production costs of reforming methanol technology
  5. Full Lifecycle Service Package: Pre-sales technical consulting, factory pre-testing, on-site commissioning, operator training, global after-sales support and later-stage purity/capacity upgrade retrofits for YPH methanol reforming hydrogen gas generator
